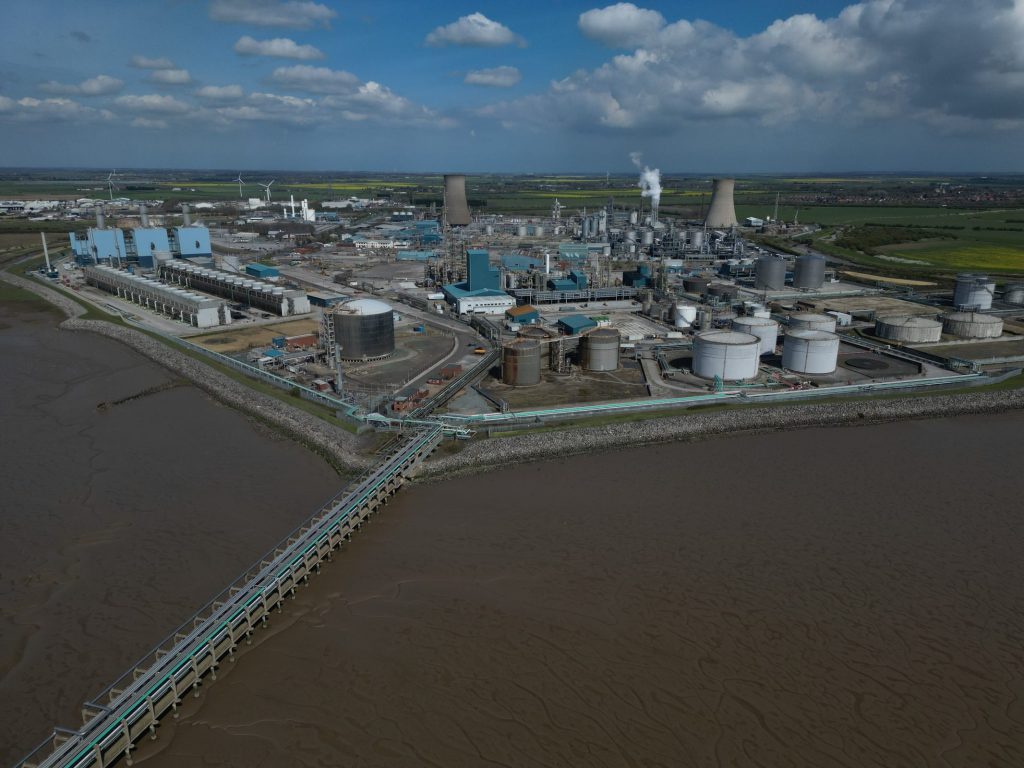

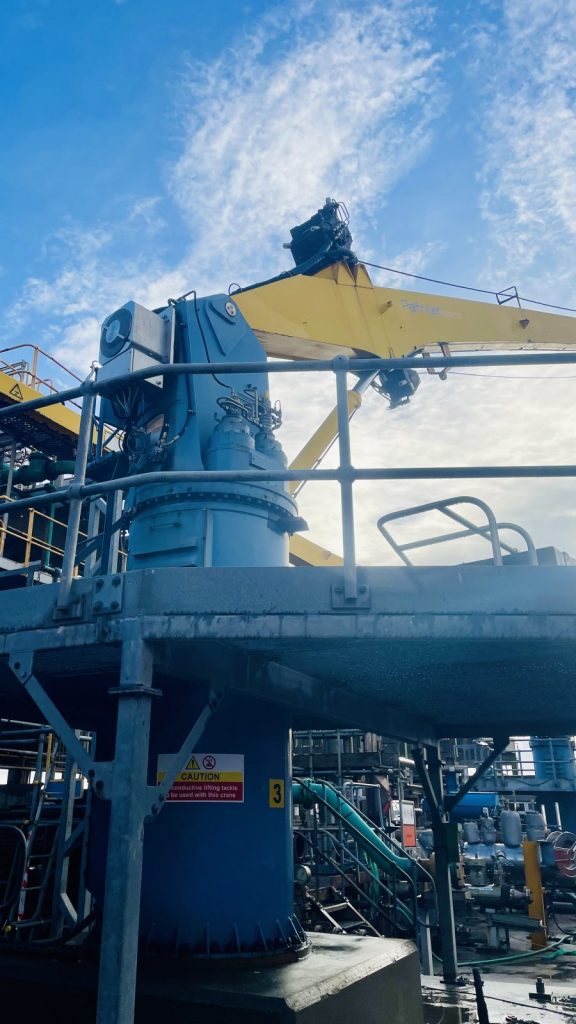

Our client at Saltend Chemicals Park engaged XES to conduct a detailed ignition hazard assessment (IHA) and compliance review for four Palfinger pedestal cranes originally designed for Zone 2 operation. The cranes were installed in a Zone 1 hazardous area, prompting the need for an evaluation under ATEX Directive 2014/34/EU and associated functional safety requirements.
Helping Saltend Chemicals Park with ATEX Zone 1 compliance of a pedestal crane
Overview
XES undertook a structured assessment aligned with BS EN ISO 80079-36 and 80079-37 to determine the suitability of the cranes for continued use in Zone 1.
As part of the review, BS EN 13852-1:2013 and BS EN 13852-3:2021 were adopted to assess equipment specific hazards, technical risk reduction measures and conformity with the essential health and safety requirements (EHSRs) of the Machinery Directive 2006/42/EC particularly those related to fire and explosion (EHSRs 1.5.6 and 1.5.7).
The crane specific standards are designated as Type C standards under EN ISO 12100:2010 and provide detailed guidance for offshore crane safety, including lifting mechanisms, load handling and hazardous environment design considerations.
The crane specific standards are designated as Type C standards under EN ISO 12100:2010 and provide detailed guidance for offshore crane safety, including lifting mechanisms, load handling and hazardous environment design considerations.
Understanding The Challenge
To validate whether Zone 2 certified mechanical equipment could be considered suitable for Zone 1 service without modification or recertification.
This required a forensic review of all potential ignition sources under both normal and fault conditions, and verification of safety measures implemented during original design and installation.
Furthermore, the assessment involved evaluating safety-related control functions against ISO 13849-1, including determination of the required Performance Level (PLr), verification of functional integrity, and adequacy of safety function response.
Our Approach and Implementation
Our assessment began with a site inspection and full asset verification at Saltend Chemicals Park, allowing our team to gain a clear understanding of the crane installations, operating context and associated ignition risks.
A structured ignition hazard assessment (IHA) was completed in accordance with BS EN ISO 80079-36 and 80079-37, addressing typical mechanical ignition sources including frictional heat, hot surfaces, and electrostatic discharge.
We then reviewed the safety-related control functions in line with ISO 13849-1, establishing required Performance Levels (PLr) and verifying whether the implemented control measures met the necessary safety function performance criteria. This included assessing the functional integrity of systems responsible for preventing hazardous conditions during crane operation.
To support Machinery Directive compliance, we adopted BS EN 13852-1:2013 and BS EN 13852-3:2021, both recognised as Type C standards under EN ISO 12100:2010, as part of our wider review. These standards provided a structured framework for evaluating crane specific hazards and technical risk reduction measures. Conformity with the essential health and safety requirements (EHSRs) of the Machinery Directive was verified through detailed cross referencing with the client’s technical file, inspection reports and manufacturer documentation.
Primary Objectives
Impact and Outcomes Delivered
XES provided a comprehensive ATEX and functional safety assessment for the crane systems, providing detailed measures required for their continued use in a Zone 1 hazardous area.
The client was supplied with a technically robust report which defined necessary measures required for conformity to applicable directives and standards. Verification of safety functions and PLr compliance under ISO 13849-1 reinforced operational assurance.
Our input also supported broader sitewide DSEAR compliance and contributed to the client’s hazardous area integrity programme.
